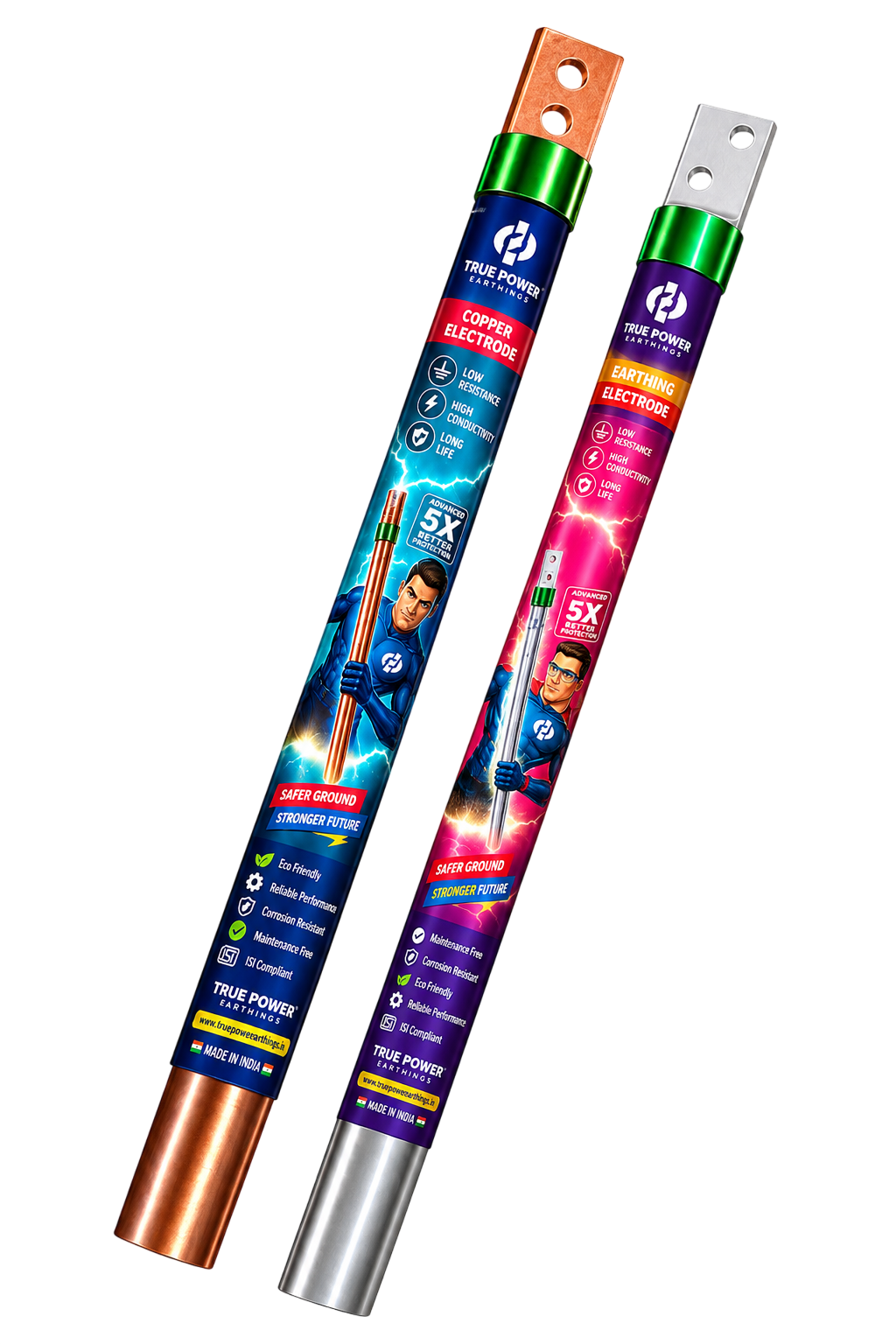

Copper Bonded Earthing Electrode
Reliable copper bonded electrodes designed for effective grounding and long-term performance.
Get A Quote
Maintenance Free Earthing Electrode
Superior Conductivity. Long-lasting Grounding.
True Power's Copper Bonded Earthing Electrode is engineered for superior electrical performance with up to 250 microns Copper Bonded on the electrode surface, ensuring highly conductive and long-lasting grounding protection.
Available in 50 mm and 80 mm outer diameters, lengths of 1 to 3 metres, and CPRI tested for quality assurance — ideal for substations, telecom, data centres, railways, and industrial installations. Minimum Order Quantity: 1000 Pieces. Model: 503 MTPBC.
Get A Quote- Up to 250 microns Copper Bonded on Electrode
- Longer Life due to Process of Bonding Over Electrode
- Highly Conductive
- Due to plating cost effective
- Easy to Install
- Petrochemical, CNG and Nuclear Facilities
- Data Centre, Telecom and Broadcasters
- Process Control and Automation
- Government, Military and Defence
- Sub-station, Wind Turbines
- CPRI Tested
- 100 microns coating on iron electrode
- Continuous Electroplating over Electrode — copper conductivity at outer section
- Variation in size availability
- Cost Effective
- Less space required at time of installation
- High Conduction on outer Section
- No Maintenance
- Lightning Protection Systems
- Substation
- Data Centre
- CNC Machine
- Telecom Industries
- UPS, EPBAX, FAX etc.
- Railway Signaling
| Minimum Order Quantity | 1000 Piece |
| Material | Galvanized Iron (GI), Copper |
| Length of Rod | 3 Meter |
| Copper Bonded | Yes |
| Alloy | With Alloy |
| Diameter | 50 mm |
| Model | 503 MTPBC |
| Inner Strip | 25x3 mm |
| Terminal Hole Size | 14 mm |
| No of BFC Bags | 2 Bags |
| Model Name | Length | Outer Dia (Copper Bonded) | Inner Strip Size (GI) | Terminal Size (Copper) | Terminal Hole Size | BFC Bags |
|---|---|---|---|---|---|---|
| 501 MTPBC | 1 mtr | 50 mm | 25 x 3 | 50 x 6 | 14 mm | 01 bags |
| 502 MTPBC | 2 mtr | 50 mm | 25 x 3 | 50 x 6 | 14 mm | 01 bags |
| 503 MTPBC | 3 mtr | 50 mm | 25 x 3 | 50 x 6 | 14 mm | 02 bags |
| 802 MTPBC | 2 mtr | 80 mm | 25 x 3 | 50 x 6 | 14 mm | 01 bags |
| 803 MTPBC | 3 mtr | 80 mm | 25 x 3 | 50 x 6 | 14 mm | 02 bags |
